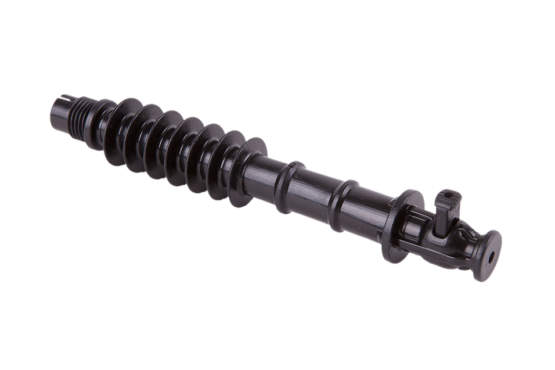

lamella drive in packer 18/160

Lamella drive in packer made of plastic with flat-head nipple. With cross slide for opening and closing, thus preventing dripping.

For injecting gels, resins and microemulsions.

Suitable for veil injection or sealing in order to subsequently seal components in contact with the ground, such as cellars, tunnels or channels, by means of injection material.

Use suitable driving-in aid!

Dimensions:
Length: 160 mm
Diameter: 18 mm
Flat head: 16 mm
Cross slider passage: 4 mm
Drill hole: 18 mm

Gel pipe holder with threaded clamping M15 x 1.5 mm for gel pipe 10 mm
